Universal Ladder Bar Rear Suspension Bracket Fabricator Kit

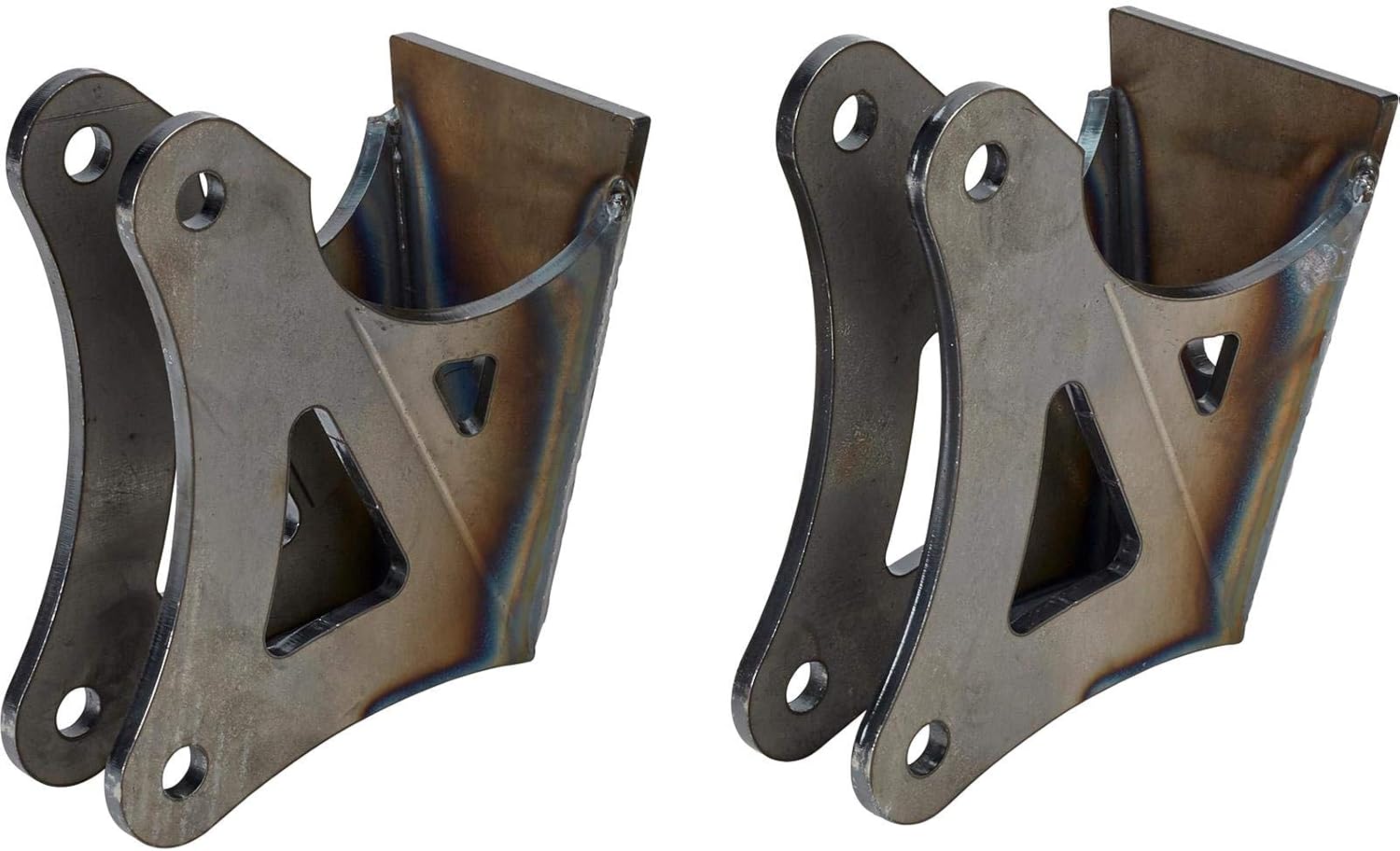

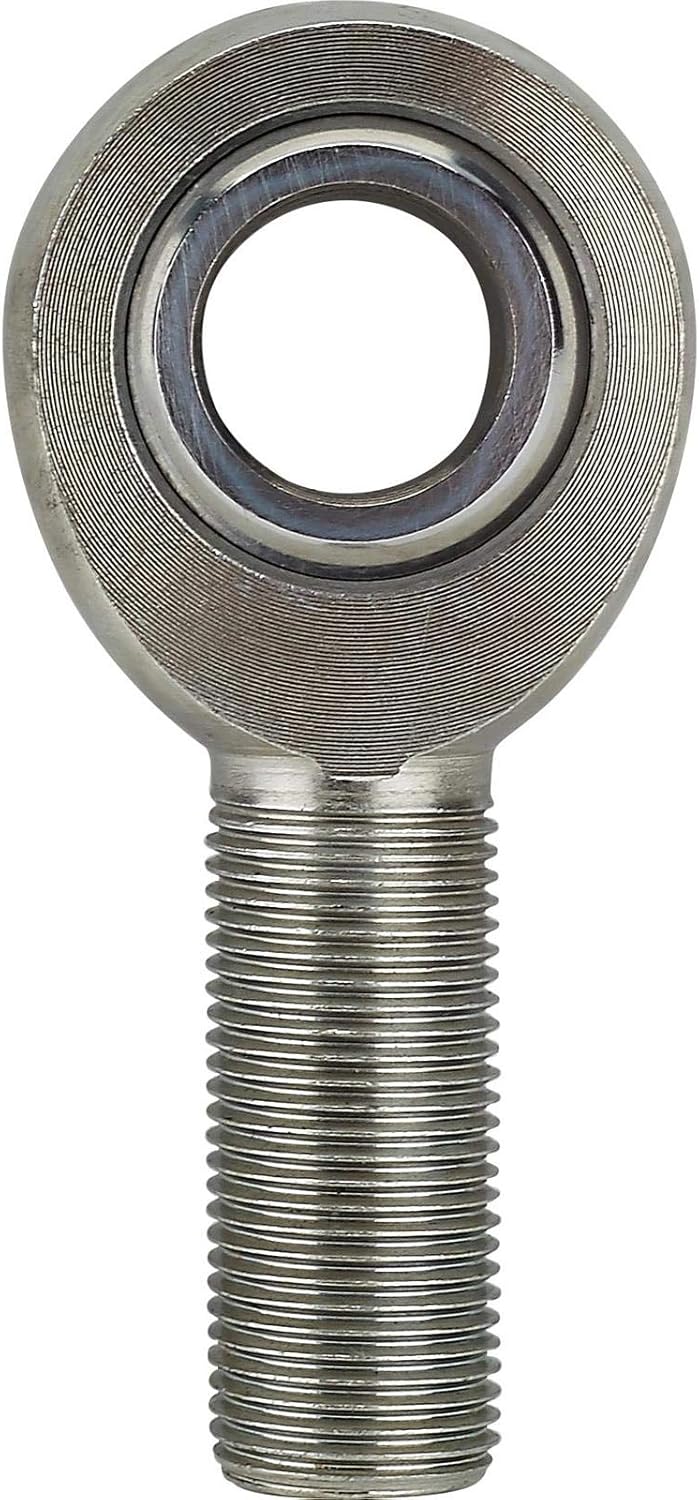

Build and fabricate your own custom length ladder bar rear suspension with this convenient mounting/hardware kit. Simply choose the rods/bars to meet your custom length needs. Kit Includes: (1) Pair of Speedway Four-Bar Rear Axle Brackets. (2) Four Hole Mounting Brackets - 3/4 Hole Size. (1) Panhard-Behind Rear End Bracket - Weld On. (2) Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch. (16) High Misalignment Spacers, 3/4 Inch OD, 1/4 In Width. (1) Set of 8 Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole. (9) Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch. (9) Precision Carbon Steel RH Male Heim Joint Rod Ends, 3/4 Inch. (9) Thin Steel Jam Nuts, 3/4-16 LH. (9) Thin Steel Jam Nuts, 3/4-16 RH. Pair of Speedway Four-Bar Rear Axle Brackets Exclusive sandwich-style brackets give greater bar support and incorporate a multi-position lower coil-over mount. Weld to 3" O.D. axle tubes only. Has three 1/2" holes for shocks. Simply drill hole size to 5/8" when using 5/8" coil-over mounting hardware. Four Hole Mounting Brackets - 3/4 Hole Size Mount radius rods, brake rods, third links, panhard bars, etc. 1/8" steel plate, 6-1/4" tall. Panhard-Behind Rear End Bracket - Weld On Behind rear end panhard bar brackets have four 3/4" holes for changing roll center and panhard bar angle. Fits 3" axle tube. Weld-on. Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch Fully engineered shock mount. 5/8" forged button head bolt looks good while offering maximum support. 1-3/4" x 1-3/4" support spacer has internal threads. Allows you to properly support this shock without crushing the bushing like others do, which leads to shock failures. Billet aluminum. 4-1/2" from base of head to end of threads. 1-1/4" shock mount base. Safely mounts to brackets 1/2" thick. Includes required washers and nylon lock nut. Uses a 1/2" Allen head wrench for holding it while tightening

• Build and fabricate your own custom length ladder bar rear suspension
• Exclusive sandwich-style brackets give greater bar support and incorporate a multi-position lower coil-over mount
• Behind rear end panhard bar brackets have four 3/4" holes for changing roll center and panhard bar angle
• Billet aluminum shock mount with forged button head bolt looks good while offering maximum support
• Carbon precision steel high misalignment spacers and rod ends provide greater strength with self lubrication teflon liner to seal out dirt and debris
